(18) Application in connector manufacturing 1 (pressing process)

Aim of EUTEC installation	Removal of press oil contaminant in the cleaning process for connector parts
Expected benefits of EUTEC installation	Improve quality of cleaning fluid and prolong service life of cleaning fluid and rinse water
Cleaning target	Coiled metal sheet
Type of dirt/contaminant	Press oil, dust
Type of cleaner being used	Alkaline degreaser
Operating temperature of cleaner	60℃
Model of oil-water separator used (process flow rate)	TH-15 (15L/min)

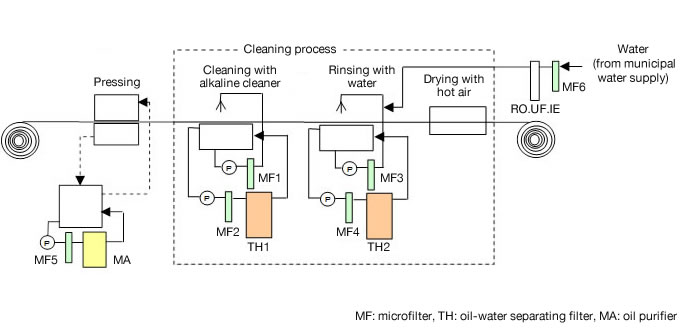

Process	Filter usage point	Filter	Purpose	Asahi Kasei filter series used
Pressing	Cleaning with alkaline cleaner	MF1	Removal of metal dust	KNP, AMWPP
		MF2	Removal of metal dust, pre-filtering	KNP, AMWPP
		TH1	Separation of oil	TH oil-water separator
	Rinsing with water	MF3	Removal of metal dust	KNP, AMWPP
		MF4	Removal of metal dust, pre-filtering	KNP, AMWPP
		TH2	Separation of oil	TH oil-water separator
	Recycling of press oil	MF5	Removal of foreign objects from press oil	AMWSC
		MA	Removal of water and foreign objects from press oil	MA oil purifier
	Generation of rinse water	MF6	Removal of foreign objects from rinse water	KNA, KYS
