EUTEC™ MF / AM series product description
Glass Fiber + PET unwoven Heat-resistant typeA-GET/A-GEN
For filtration of organic solvents, resin paints, general mineral oils and microparticles suspended in gas, etc.
| (1) Applications | Filtration of organic solvents, resin paints, general mineral oils and microparticles suspended in gas, etc. |
|---|---|
| (2) Characteristics | Utilize glass fiber, polyester and/or nylon components to handle a variety of different solvents |
| (3) Materials | A-GET: Glass fiber + PET + PBT A-GEN: Glass fiber + PET + PA6 |
| (4) Filter rating | abs 1.0μm ~ 30μm |
| (5) Dimensions | OD (outer diameter) φ70 x 10 inch ~ 30 inch |
| (6) Max. operating temperature | A-GET: 130℃ (*may vary depending on target fluid) A-GEN: 80℃ (*may vary depending on target fluid) |
| (7) Max. operating pressure | 0.49MPa |
Materials
| A-GET | A-GEN | |
|---|---|---|
| 1. External casing |
Polyester (PBT) |
Nylon 6 (PA6) |
| 2. Secondary filter media |
Polyester (PET) |
Polyester (PET) |
| 3. Main filter media |
Inorganic fiber | Inorganic fiber |
| 4. Secondary filter media |
Polyester (PET) |
Polyester (PET) |
| 5. Internal casing |
Polyester (PBT) |
Nylon 6 (PA6) |
| 6. Plate |
Polyester (PBT) |
Nylon 6 (PA6) |
| 7. Gasket |
Specifications
| A-GET/A-GEN | 022 | 045 | 100 | 300 | 500 | 10E | ||
|---|---|---|---|---|---|---|---|---|
| Absolute filter rating (μm) | 1.0 | 3.0 | 6.0 | 12 | 20 | 30 | ||
| Dimensions | Overall length (mm) |
10inch(250mm) 20inch(500mm) 30inch(750mm) | ||||||
| Outside diameter (mm) |
70 | |||||||
| Inside diameter (mm) |
25.9 | |||||||
| Filter surface area (cm2) | A-GET | 3500 | 3700 | |||||
| A-GEN | 3700 | 3900 | 4000 | 4200 | ||||
| Max. operating temperature (℃) | 130 (A-GET) / 80 (A-GEN) | |||||||
| Max. operating pressure (MPa) | 0.49 | |||||||
* [Filter surface area] indicates surface area per every 10 inches of length.
* [Max. operating temperature] indicates maximum operating temperature when passing water (hot water) through the filter media.

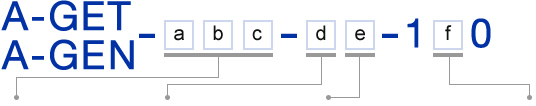

Model code
a～c
| Filter rating | |
|---|---|
| Code | Rating |
| 022 |
abs. 1.0μm |
| 045 |
abs. 3.0μm |
| 100 |
abs. 6.0μm |
| 300 | abs. 12μm |
| 500 | abs. 20μm |
| 10E | abs. 30μm |
d
| Length indicator |
|
|---|---|
| Code | Length |
| 1 |
10 inch |
| 2 |
20 inch |
| 3 |
30 inch |
e
| Seal shape | |
|---|---|
| Code | Shape |
| F | Flat DOE |
| T | 226 O-ring SOE Fin○ |
| P | 226 O-ring SOE Fin× |
| W | 222 O-ring SOE Fin○ |
| M | 222 O-ring SOE Fin× |
- DOE；Double Open End
(both ends open) - SOE；Single Open End (bottom end open)
- Fin○；Finned
- Fin×；Finless
f
| Gasket / O-ring material |
|
|---|---|
| Code | Material |
| N |
NBR |
| S |
Silicon |
| E |
EPR |
| V |
FPM |
| T | PTFE (gasket) |
| F | PFA capsule (O-ring) |
| R | Soft PTFE (gasket) |
