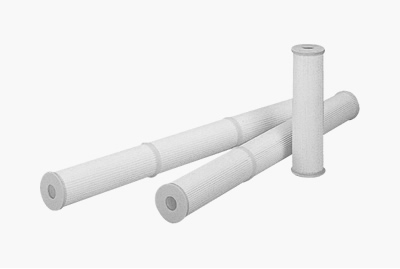

EUTEC™ MF / AM series product description
PP unwoven + PET unwoven Density gradient, economy typeA-NPE
For filtration of irregular-shaped particles, gels and other particle matter
| (1) Applications | Filtration of irregular-shaped particles and gels |
|---|---|
| (2) Characteristics | A lower-cost alternative to the A-MWX series, effective in the filtration of irregular-shaped particles and gels due to the density gradient of their filter media |
| (3) Materials | PP + PET |
| (4) Filter rating | abs 1.0μm ~ abs 7.0μm |
| (5) Dimensions | OD (outer diameter) φ70 x 10 inch ~ 30 inc |
| (6) Max. operating temperature | 80℃ (*may vary depending on target fluid) |
| (7) Max. operating pressure | 0.49MPa |
Materials
| 1. Gasket |
Polypropylene (PP) |
|---|---|
| 2. Plate |
Polypropylene (PP) |
| 3. Net | Polypropylene (PP) |
| 4. Secondary filter media |
Polypropylene (PP) |
| 5. Main filter media |
Polypropylene (PP) polyester (PET) |
| 6. Support net |
Polypropylene (PP) |
| 7. Internal casing | Polypropylene (PP) |
Specifications
| A-NPE series | 010 | 020 | 030 | 050 | 070 | |
|---|---|---|---|---|---|---|
| Absolute filter rating (μm) | 0.1 | 0.2 | 0.3 | 0.5 | 0.7 | |
| Dimensions | Overall length (mm) |
10inch(241.5mm) 20inch(501.4mm) 30inch(760.3mm) | ||||
| Outside diameter (mm) |
70 | |||||
| Inside diameter (mm) |
26 | |||||
| Filter surface area (cm2) | 3600 | 4100 | 2400 | 2200 | ||
| Max. operating temperature (℃) | 80 | |||||
| Max. operating pressure (MPa) | 0.49 | |||||
* [Filter surface area] indicates surface area per every 10 inches of length.
* [Max. operating temperature] indicates maximum operating temperature when passing water (hot water) through the filter media.
Model code
a～c
| Filter rating | |
|---|---|
| Code | Rating |
| 010 |
abs. 1.0μm |
| 020 | abs. 2.0μm |
| 030 | abs. 3.0μm |
| 050 | abs. 5.0μm |
| 070 | abs. 7.0μm |
d
| Length indicator |
|
|---|---|
| Code | Length |
| 1 |
10 inch |
| 2 |
20 inch (O-ring) |
| 9 | 20 inch (gasket) |
| 3 | 30 inch |
e
| Seal shape | |
|---|---|
| Code | Shape |
| F | Flat DOE |
| M | 222 O-ring SOE Fin× |
- DOE；Double Open End
(both ends open) - SOE；Single Open End
(bottom end open) - Fin×；Finless
f
| Gasket / O-ring material |
|
|---|---|
| Code | Material |
| K |
PP |
| N | NBR |
| S |
Silicon |
| E |
EPR |
| V |
FPM |
| T | PTFE (gasket) |
| F | PFA capsule (O-ring) |
| R | Soft PTFE (gasket) |
Flow rate / pressure drop characteristics
